• Features

Rod seal with increased spring force.

Static & Dynamic sealing-Type HR


Type HR:

Rod seal with increased

spring force for static & dynamic application

Application Range

Pressure: ≦ 400 bar

Temperature: -120 ～ +260℃

*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

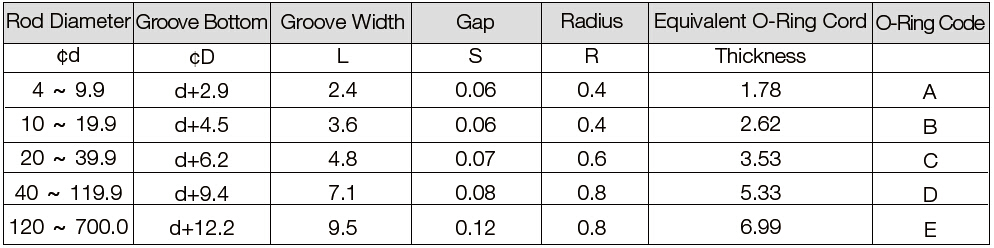

Example of an order

Type HR

Rod diameter ¢d=100 mm

Groove bottom ¢D=109.4mm

Groove width L=7.1mm
