• Features

Installation—for installation in open grooves

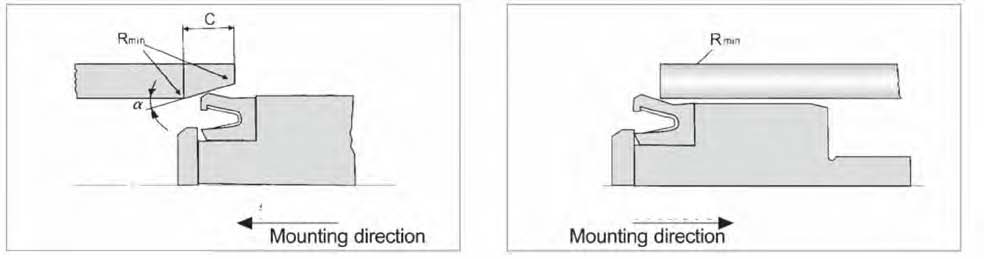

Assembly of rod seal in open groove.

Sealing lips in mounting direction.

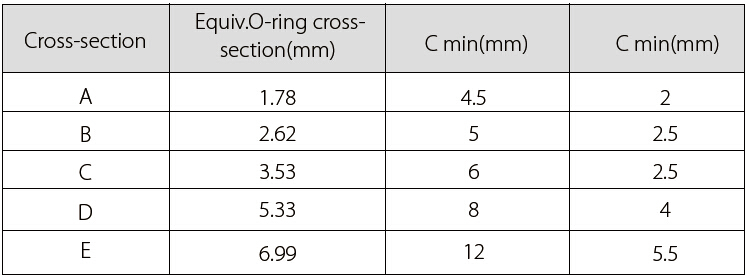

Values for lead-in chamfer:

see table below.

All edges rounded.

We recommend: Rmin = 0.5mm

Assembly of rod seal in open groove.

Back of the seal in mounting direction.

All edges rounded.

We recommend: Rmin = 1mm

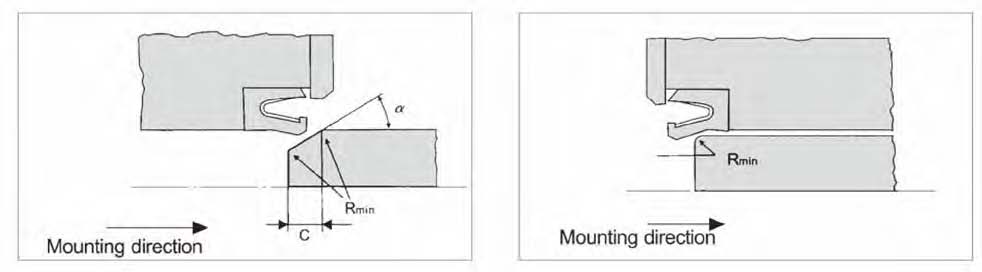

Assembly of piston seal in open groove.

Sealing lips in mounting direction.

Values for lead-in chamfer:

see table below. All edges rounded.

We recommend: Rmin = 0.5mm

Assembly of piston seal in open groove.

Back of the seal in mounting direction

All edges rounded.

We recommend: Rmin = 1mm

HiperSeal can fit AS 568A glands(or other standard O-ring groove) Without any modification


HiperSeal Can replace O-ring , and match DIN 3771, ISO 3601, AS 568, BS 1806 standard.
