Reciprocating rod seal-Type VR

Reciprocating rod seal-Type CR


Type VR:

Rod seal for reciprocating application

Application Range

Pressure: ≦ 350 bar

Temperature: -150 ～ +225℃

Sliding speed: ≦15 m/s

*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

*Reciprocating speed >8m/s,need a retainer ring and increase.

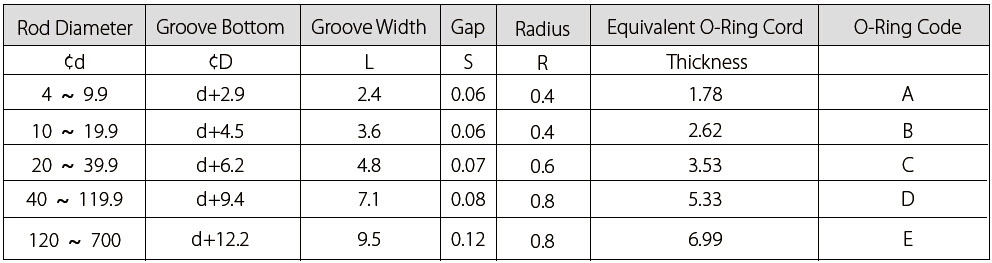

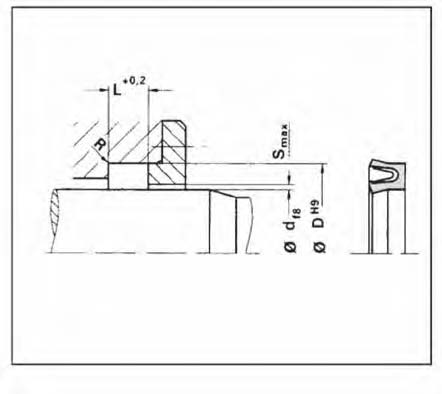

Example of an order

Type VR

Rod diameter ¢d=100 mm

Groove bottom ¢D=109.4mm

Groove width L=7.1mm
