• Features

Face seal,static inside sealing-Type VC

Face seal,static inside sealing-Type CC

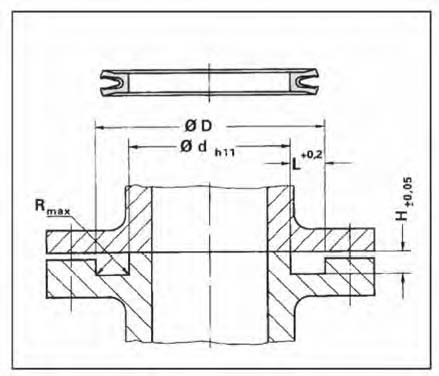

Type VC:

Face seal or flange seal

for static outside sealing

Application Range

Pressure: ≦ 350 bar

Temperature: -150 ～ +225℃

*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

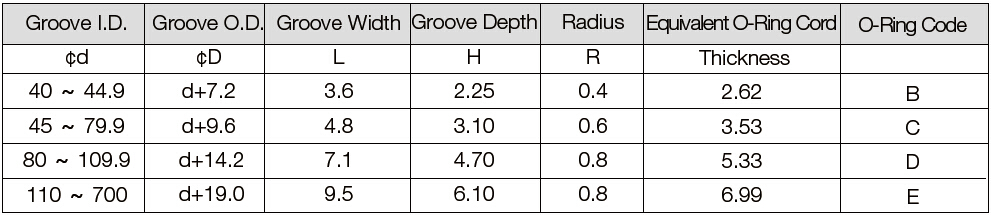

Example of an order

Type VC

Groove I.D. ¢d=100 mm

Groove O.D. ¢D=114.2mm

Groove depth H=4.7mm
