• Features

Face seal with increased spring force.

static outside sealing-Type HC

Type HC:

Face seal or flange seal for

higher inside pressure

Application Range

Pressure: ≦ 500 bar

Temperature: -150 ～ +260℃

*Other materials are available for special operating conditions.

Our application engineers will be glad to advise you.

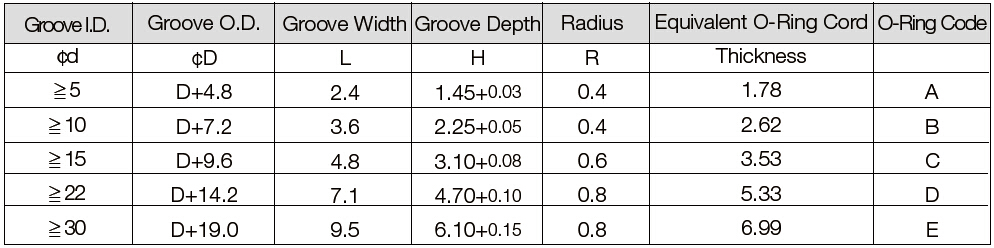

Example of an order

Type HC

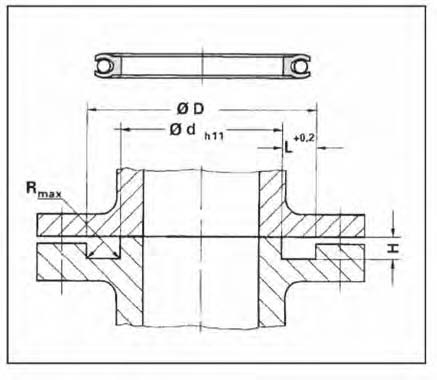

Groove I.D. ¢d=100 mm

Groove O.D. ¢D=119mm

Groove depth L=6.1mm
